Low-retention flow path
Disc and seat geometry are selected to support clean transfer, reduced hold-up and practical clean-in-place operation.
CE-BFV-A Series · Hygienic Flow Control
Sanitary Butterfly Valve for Clean Process Shutoff.
Compact 316L stainless steel butterfly valve engineered for hygienic transfer lines, tank outlets, CIP/SIP circuits and automated food, dairy, beverage, pharmaceutical and biotech process systems.
316L SSTri-Clamp / WeldManual / PneumaticFDA SeatsCIP/SIP Ready
Product Overview
Engineered for hygienic shutoff with compact installation.
The CE-BFV-A sanitary butterfly valve is specified for clean process lines where quick quarter-turn shutoff, compact body geometry and reliable CIP/SIP cleanability are required. It is designed for integration into food, dairy, beverage, pharmaceutical and biotech process systems using sanitary clamp or weld-end connections.
Manual or pneumatic
Available for manual service points or automated process lines using pneumatic actuator packages by RFQ.
Clamp / weld end
Compatible with common hygienic piping layouts, valve manifolds, tanks, skids and CIP/SIP utility circuits.
Engineering Features
Product-specific details for sanitary butterfly valve selection.
Use these points to align valve configuration before submitting a technical RFQ.
Compression sealing
Disc-to-seat compression provides shutoff performance while maintaining a simple, cleanable internal profile.
EPDM / FKM / Silicone
Seat material should be selected based on media, temperature, cleaning chemicals and food/pharma compatibility.
Handle / actuator
Multi-position handles are available for manual operation; pneumatic actuators can be specified for automated lines.
Ra ≤ 0.8 μm typical
Internal wetted surfaces can be specified for standard sanitary service or higher-finish requirements by RFQ.
Tri-Clamp / Weld
Clamp ends support serviceability; weld ends support permanent hygienic piping and skid fabrication.
MTR / QC by RFQ
Material traceability, inspection notes and finish documentation can be included in the procurement package.
Technical Specifications
Typical CE-BFV-A sanitary butterfly valve specification range.
Final ratings and dimensions should be confirmed against the approved supplier drawing and operating conditions.
| Parameter | Typical Specification |
|---|---|
| Product Series | CE-BFV-A Sanitary Butterfly Valve |
| Body / Disc Material | 316L stainless steel; 304 available for selected utility applications by RFQ |
| Connection Types | Tri-Clamp, butt weld; DIN / SMS / RJT / I-Line options by request |
| Nominal Size Range | 1/2 in to 4 in typical sanitary range; larger sizes by RFQ |
| Pressure Rating | Up to 10 bar typical, subject to size, seat material and temperature |
| Temperature Range | Approx. -20°C to +150°C depending on elastomer selection |
| Seat Materials | EPDM, FKM, silicone; FDA-compliant elastomers available |
| Operation | Pull handle, multi-position handle, pneumatic actuator, electric actuator by RFQ |
| Surface Finish | Ra ≤ 0.8 μm typical sanitary finish; electropolish option by request |
| Standards Language | 3-A, FDA, ASME BPE / EHEDG design references where applicable |
Connection & Configuration Options
Specify the valve as part of the full hygienic line.
Butterfly valve performance depends on how it integrates with tubing, gaskets, clamps, actuators and process cleaning conditions.
- Tri-Clamp for removable sanitary assemblies
- Weld end for permanent process piping or skid fabrication
- Manual handle for simple isolation points
- Pneumatic actuator for automated CIP/SIP or process sequencing
Surface Finish & Materials
Built around hygienic stainless requirements.
316L stainless steel and sanitary finish options help support food, dairy, beverage and high-purity process environments.
- 316L stainless wetted components
- FDA-compliant elastomer options
- Mechanical polish or electropolish by RFQ
- MTR/MTC and inspection documentation by request
Applications
Designed for common hygienic shutoff points in process plants.
Use sanitary butterfly valves where compact installation, fast operation and sanitary line isolation are required.
Ingredient & sauce transfer
Suitable for clean product lines, batch transfer, utility isolation and plant maintenance replacement programs.
Milk and cream lines
Commonly used around pasteurization, transfer, CIP return, tank outlets and hygienic distribution circuits.
Brewing, juice and water
Supports compact valve stations, product transfer lines and process utility service in beverage facilities.
Clean utility systems
Can be specified for selected high-purity utility and process skid applications where butterfly valve geometry is acceptable.
Cleaning circuits
Useful for routing, isolation and automated cleaning sequences when seat material and temperature are matched correctly.
Compact valve packages
Works well in skid-mounted systems where footprint, actuator clearance and repeatable operation matter.
Sizes & Dimensions
Standard sanitary butterfly valve sizes.
Available in DN25 through DN150 with tri-clamp, weld or flanged ends. Compact wafer-style body for tight installations.
| Nominal | DN | OD (mm) | Tri-Clamp (mm) | Body Width (mm) | Cv | Weight (kg) |
|---|---|---|---|---|---|---|
| 1" | DN25 | 25.4 | 50.5 | 38 | 45 | 0.8 |
| 1½" | DN40 | 38.1 | 64.0 | 46 | 90 | 1.2 |
| 2" | DN50 | 50.8 | 77.5 | 54 | 180 | 1.8 |
| 2½" | DN65 | 63.5 | 91.0 | 57 | 320 | 2.5 |
| 3" | DN80 | 76.2 | 91.0 | 64 | 500 | 3.5 |
| 4" | DN100 | 101.6 | 119.0 | 70 | 900 | 5.0 |
| 6" | DN150 | 152.4 | 183.0 | 76 | 2100 | 9.5 |
Operating Conditions
Pressure-temperature rating for butterfly valves.
Performance varies by seat material. EPDM is standard; silicone and Viton offer extended temperature ranges.
Service Conditions
- Standard EPDM: –40°C to +130°C, max 10 bar
- Silicone seat: –60°C to +200°C, max 10 bar
- Viton (FKM): –20°C to +200°C, max 10 bar
- Steam SIP cycles: +135°C compatible (silicone)
- Body test pressure: 1.5× working pressure
- Operating torque: Manual lever or pneumatic actuator
Actual ratings depend on size, material and operating conditions. Confirm via RFQ for project-specific requirements.
Standards & Compliance
Built to recognized sanitary and pressure standards.
Full documentation packages available including MTR, 3.1 certificates, surface roughness reports and pressure test records.
3-A 74-07
3-A Sanitary Standard
Sanitary equipment for milk and milk products processing.
ASME BPE
Bioprocessing Equipment
Surface finish, materials and design for pharma/biotech.
EHEDG
Hygienic Equipment Design
European hygienic engineering and design certification.
FDA 21 CFR
FDA 21 CFR 177
Food contact materials compliance for seats and seals.
ASTM A276
Stainless Steel Bar
Material specification for 304/316L bodies.
DIN 32676
Tri-Clamp Connections
Dimensional standard for tri-clamp fittings.
ISO 5211
Actuator Mounting
Standardized actuator mounting for automation.
ATEX
Hazardous Areas
Explosive atmosphere directive for actuators.
Product Variants
Butterfly Valve configurations for different process roles.
Multiple variants available to match your application requirements. Browse related products for complete process line coverage.

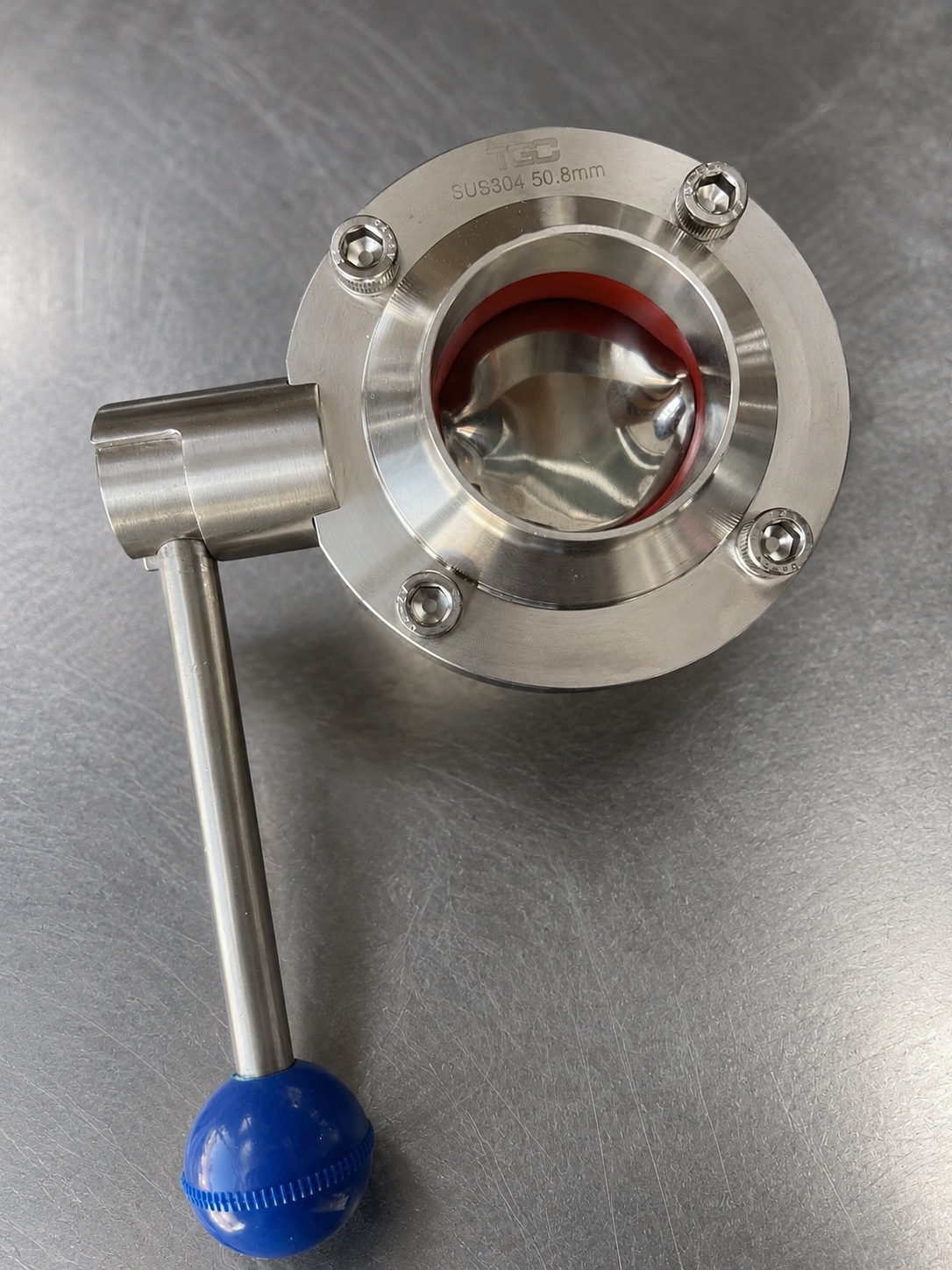

Manual Butterfly Valves
Lever-operated with multi-position handle for manual shut-off and throttling applications.
Request quote →

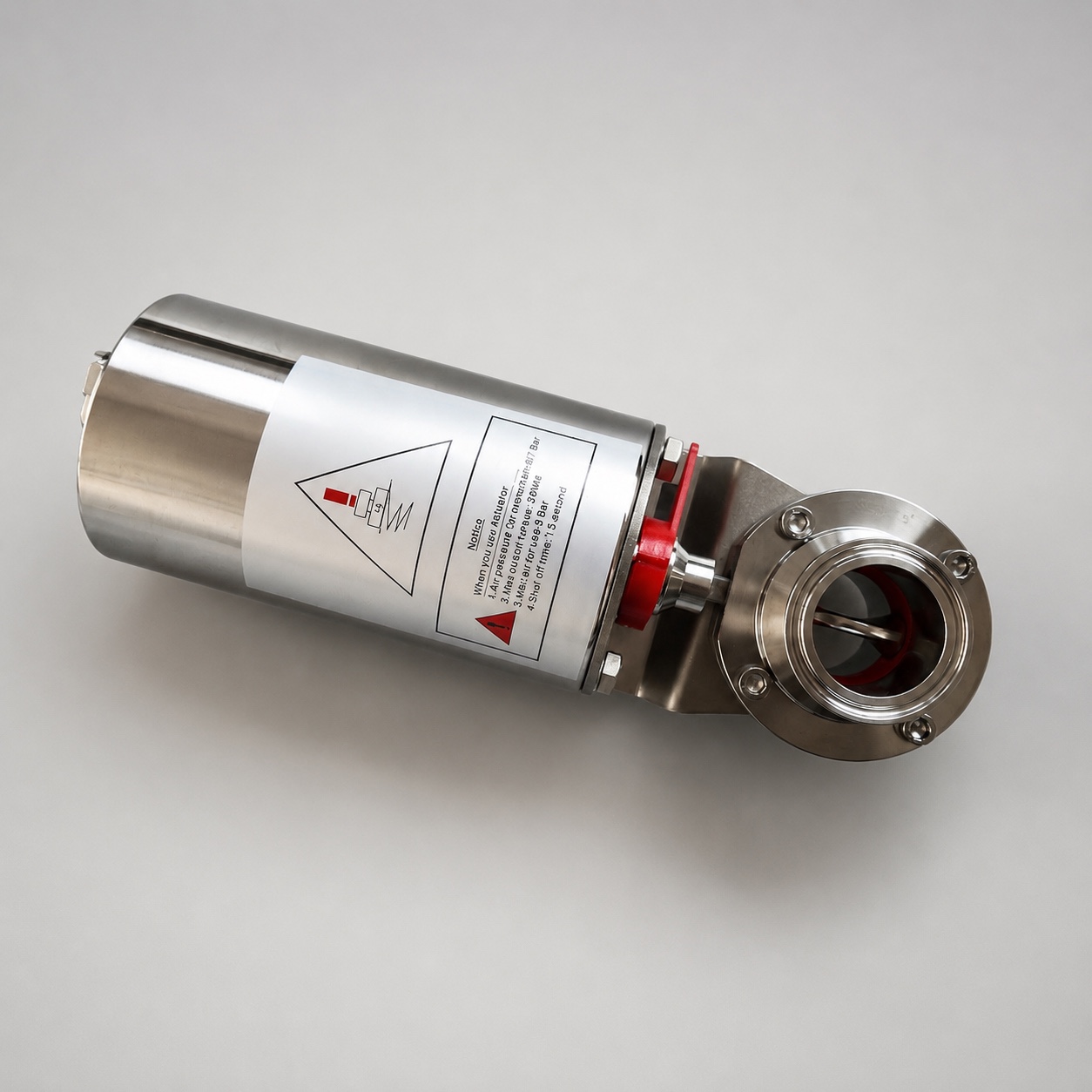

Pneumatic Butterfly Valves
Air-actuated for automated CIP/SIP integration and remote process control.
Open page →

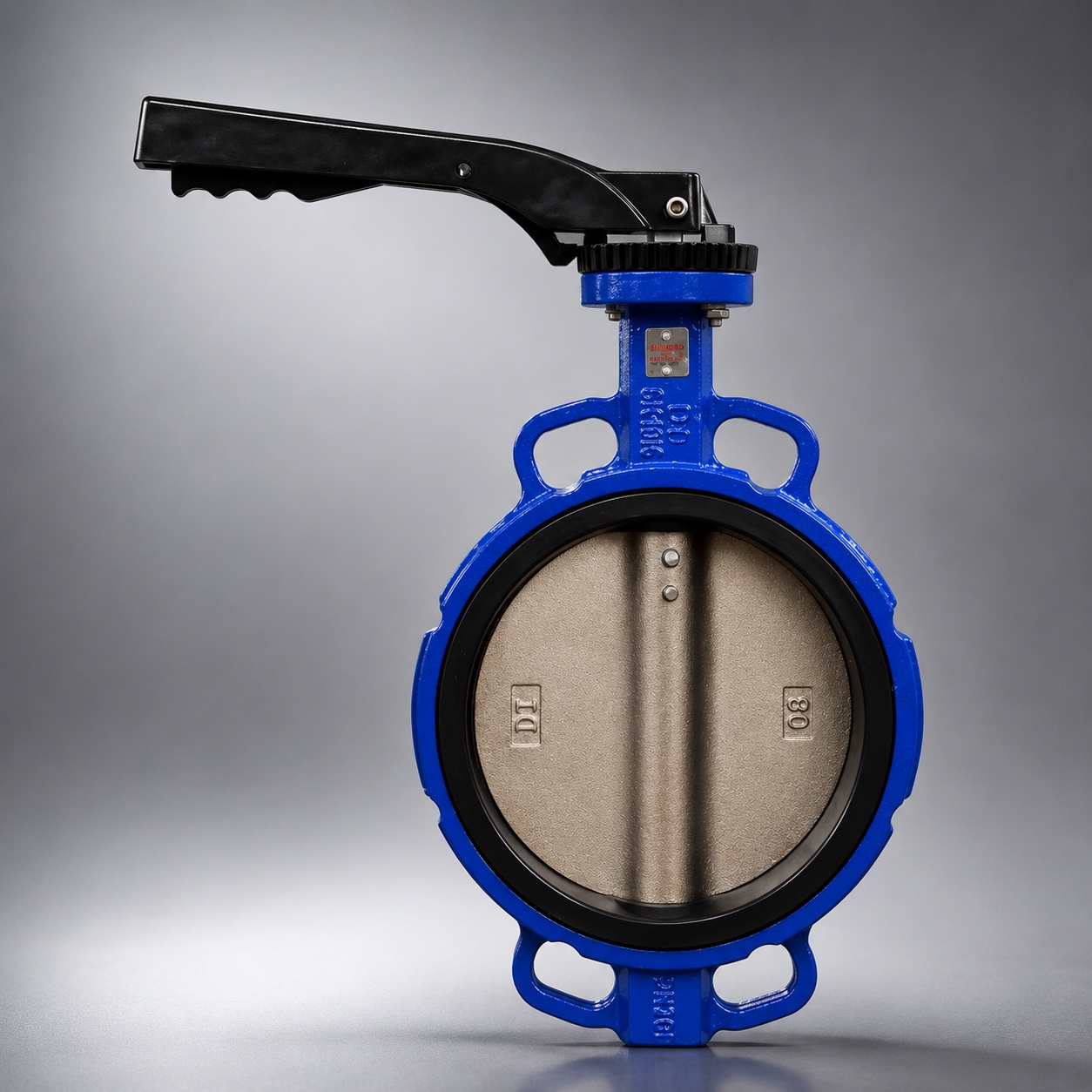

Wafer Style
Compact wafer-type body for installation between flanges in tight spaces.
Request quote →

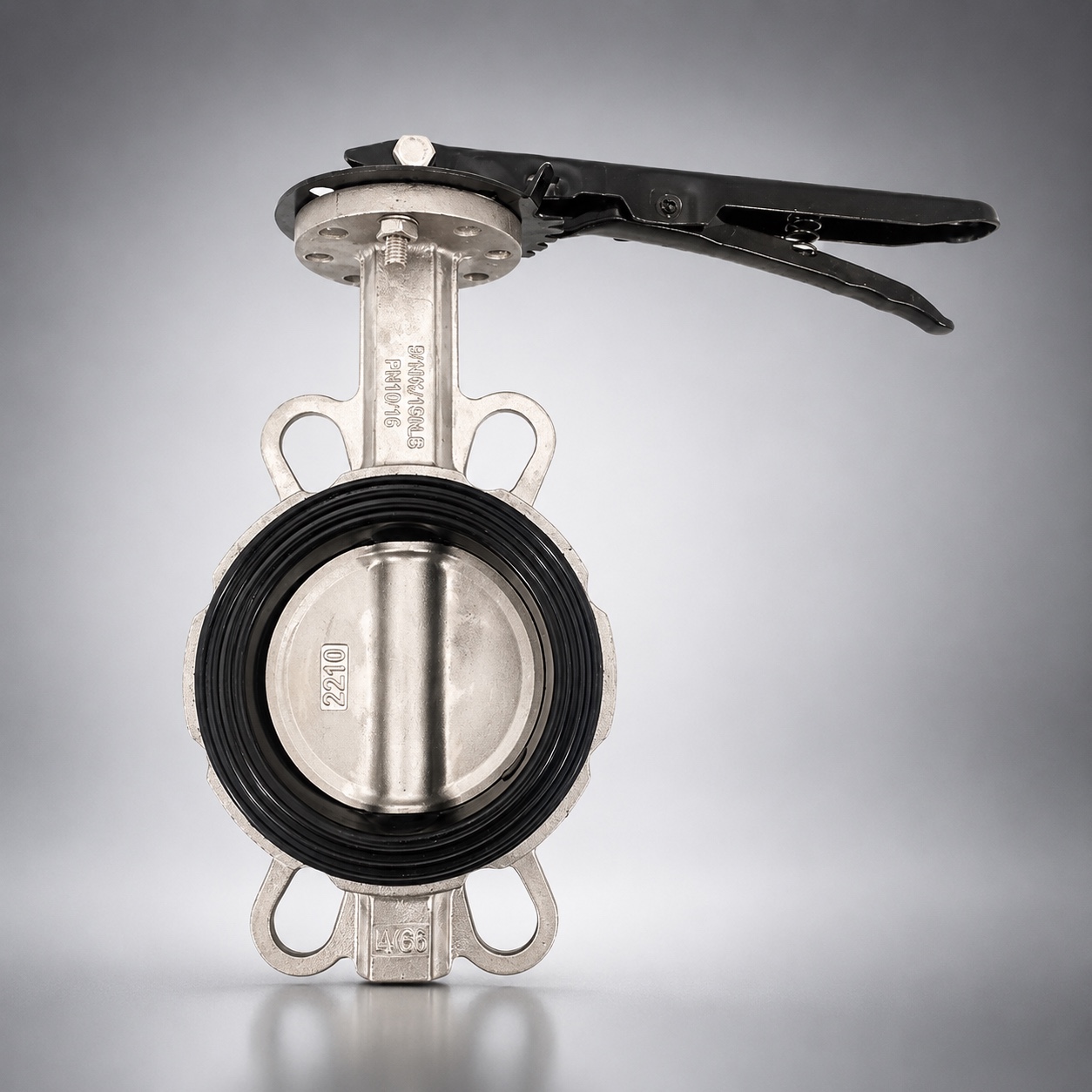

Lugged Style
Lugged body with threaded holes for dead-end service and pipe-removal capability.
Request quote →RFQ Preparation
Request a quote with the right technical inputs.
A clear RFQ reduces revision cycles and helps match the valve to your process, cleaning method and documentation requirements.
| RFQ Field | What to Provide |
|---|---|
| Size | Tube OD / DN / inch size and quantity |
| Connection | Tri-Clamp, weld, DIN, SMS, RJT or I-Line |
| Seat Material | EPDM, FKM, silicone or process-specific elastomer requirement |
| Operation | Manual handle, pneumatic actuator, spring return, double acting or electric |
| Service Conditions | Media, pressure, temperature, cleaning chemicals and CIP/SIP cycle |
| Documentation | MTR/MTC, finish report, inspection documents, certificates or project submittals |
Common Questions
Frequently asked questions about butterfly valves.
Engineering and procurement questions we hear most often. For project-specific guidance, send your application details via RFQ.
When should I choose butterfly over ball valves?
Butterfly valves are preferred for larger sizes (typically 2" and up) where ball valves become heavy and expensive. They offer faster quarter-turn operation, lower torque, smaller footprint and lower cost in larger sizes.
Ball valves remain better for full-bore flow, throttling control and where complete shutoff is critical. Butterfly valves are ideal for on/off service, larger lines and where space is constrained.
What seat material is best for high-temperature service?
For continuous service above 130°C, choose silicone (up to 200°C) or Viton/FKM (up to 200°C). For SIP cycles at 121–135°C, silicone or PTFE-faced seats provide best durability.
EPDM is standard for ambient and CIP service up to 130°C. For sustained high temperature or aggressive chemicals, specify silicone, Viton or PTFE-faced seats.
Can butterfly valves throttle flow?
Yes, but with limitations. Effective control range is typically 30–70° of disc rotation. Outside this range, control authority drops and cavitation risk increases.
For dedicated control applications, request a butterfly valve with positioner and characterized disc. For simple throttling, manual valves with multi-position handles are available.
What is the difference between wafer, lug and double-flanged?
Wafer style fits between two pipe flanges using long bolts. Lug style has threaded inserts allowing one pipe to be removed without affecting the valve. Double-flanged has integrated flanges.
For sanitary service, tri-clamp connections are most common and avoid flange complications entirely. Specify connection style based on pipe spec.
How much torque is needed for manual operation?
Manual lever operation is suitable up to DN100 (4"). Above this size, gearbox or pneumatic actuator is recommended due to high break-away torque.
Actual torque depends on size, seat material, differential pressure and media. Provide line conditions when specifying for actuator sizing.
What documentation is available?
Standard documentation includes EN 10204 3.1 MTR for body and disc materials. Optional packages include FDA compliance for seats, ASME BPE surface finish reports, ATEX certificates.
For pharmaceutical applications, specify ASME BPE compliance and request full traceability package.
Are pneumatic actuators ATEX-rated?
Standard actuators are not ATEX-certified. For hazardous area service, specify ATEX-rated solenoid valves, limit switches and proximity sensors with the actuator package.
Provide zone classification (Zone 1, Zone 2) and gas/dust group with your RFQ. Full ATEX-rated assemblies available.
Need sanitary butterfly valves for a project or plant replacement?
Send size, connection, seat material, actuator type, quantity, service conditions and documentation requirements for a structured technical RFQ.
Engineering Documentation
Technical Datasheet Available
Download the product datasheet for technical specifications, dimensional references, material data, applicable standards and RFQ guidance. Suitable for procurement, engineering review and project documentation.
